Descriere

Statie Radio CB27

Statie radio mobila 27 MHz (CB27), INTEK, AM/FM, 4W, 13,8VDC

GARANTIE 24 LUNI

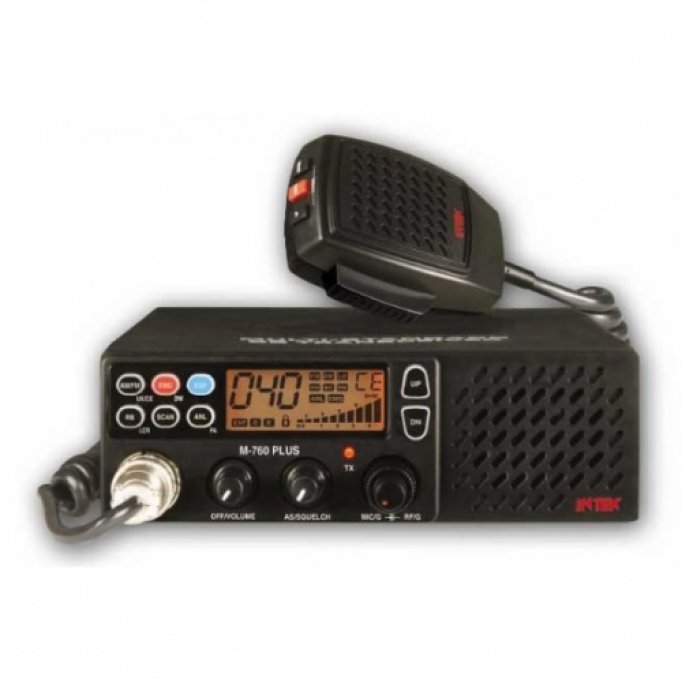

INTEK M-760 - Statie radio CB 27MHz New FRONT SPEAKER DESIGN CB radios, the latest INTEK series of stateof- the-art CB (27 MHz) mobile transceivers, with advanced software and hardware design, specifically conceived for Citizen Band operators and for car & truck drivers. 8 bands programmable multi standard circuit design, matching the frequency & operating mode requirements of various countries. 3W front speaker for strong and clear direct audio sound. A number of unique features makes this radio one of the most advanced and sofisticated mobile CB transceiver in the market. One radio only, ready for use in all the European countries !

Features • MULTI STANDARD CIRCUIT DESIGN

• ALL EUROPEAN BANDS

• BACKLIGHTED LCD DISPLAY

• 2nd GENERATION ESP "COMPANDER"

• RX/TX AUDIO SPEECH PROCESSOR (COMPRESSOR-EXPANDER)

• FIXED OR MANUAL SQUELCH

• ROGER BEEP TONE

• AUTO SCAN / DUAL WATCH

• HIGH QUALITY MICROPHONE

• WITH UP/DOWN AND LOCK KEYS

• AUTOMATIC NOISE LIMITER

• QUICK UP / DN CH SELECTION

• PA FUNCTION

• RF GAIN AND MIC GAIN CONTROLS

• EMG, LCR

• DIGITAL 10 BAR S/RF METER

Specifications

General

Channels

Refer to programmed band

Modes (AM, FM)

Refer to programmed band

Operating Temp.

-10°/+55°C

DC Input Voltage

13.2Vdc ±15%

Size

153(L) x 50(H) x 180(D) mm

Weight

1 Kg

TRANSMITTER

System

CPU Controlled PLL

Synthesizer

Max Output Power

4W at 13.2Vdc

Modulation

AM (from 85% to 95%)

FM (1.8 KHz ±0.2 KHz)

Output Impedanced

50 Ohm unbalanced

Current Drain

1100 mA (at no modulation)

RECEIVER

System

CPU Controlled Double

Conversion Super

Heterodyne

IF

1° 10.695 MHz / 2° 455 KHz

Sensitivity

0.5µV for 20dB SINAD (FM)

0.5µV for 20dB SINAD (AM)

Audio Output Power

@10% THD 2.5W at 8 Ohm

Audio Distorsion

<8% at 1 KHz

Image Rejection

65dB

Adjacent Ch. Rejec.

65dB

Signal/Noise Ratio

45dB

Current Drain

250mA (stand-by)

FREQUENCY BAND / MODE PROGRAM

E1 ITALY/SPAIN 40CH AM/FM 4W

I2 ITALY 36CH AM / FM 4W

DE GERMANY 80CH FM 4W / 12CH AM 1W

D2 GERMANY 40CH FM 4W / 12CH AM 1W

EU EUROPE/FRANCE

40CH FM 4W / 40CH AM 1W

CE CEPT 40CH FM 4W (DEFAULT)

UK ENGLAND 40CH + CEPT 40CH FM 4W

PL POLAND 40CH AM/FM 4W (-5 KHz)

This radio includes the new 2nd generation ESP "COMPANDER". The meaning of "COMPANDER" is Compressor-Expander. This CPU controlled audio Speech Processor works as a modulation Compressor in TX and as a modulation Expander in RX. ESP provides a stronger and more clear and readable audio signal. It is a great help in noisy areas and in case of long distance communication and weak signals. The efficiency of ESP is even higher when communicating with another radio having the same ESP system.
