Statie radio mobila 27 MHz (CB27), INTEK, AM/FM, 4W, 13,8VDC
GARANTIE 24 LUNI

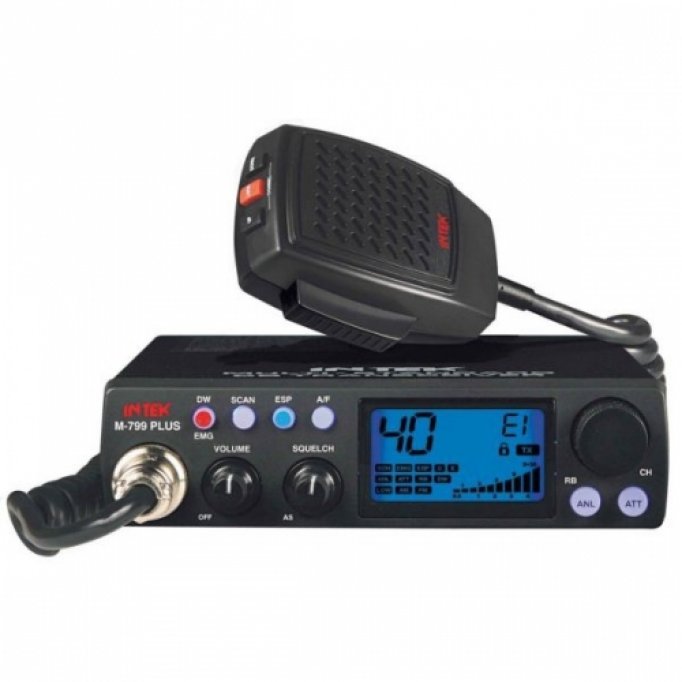

INTEK M-799 - Statie Radio CB 27MHz
State-of-the-art Citizen Band 27MHz mobile transciever, with advanced hardware and software design, suitable for Citizen Band operators and for car and truck drivers. 9 band programmable multi standard circuit design, matching the frequency & operating mode requirements of all the European countries. Large size blue color LCD, 3W speaker for strong and clear audio sound, ESP Audio Speech Processor, Auto Scan, fixed or manual Squelch control, Automatic Noise Limiter, RX Signal Attenuator, Dual Watch and Roger Beep. Dynamic microphone with soft type curl cord. Compact sized easy to install cabinet. One radio only, ready to use in all the European countries!
Features
• MULTI STANDARD CIRCUIT DESIGN
• EXTRA LARGE BACKLIGHTED BLUE COLOR LCD
• 9 BANDS PROGRAMMABLE
• 2nd GENERATION ESP "COMPANDER" RX/TX MODULATION PROCESSOR (COMPRESSOR-EXPANDER)
• AM/FM
• FIXED OR MANUAL SQUELCH
• AUTO SCAN
• ANL (AUTOMATIC NOISE LIMITER)
• DUAL WATCH, ROGER BEEP TONE
• RX SIGNAL ATTENUATOR
• EMERGENCY CHANNELS CH9/CH19
• BACKLIGHTED RUBBER SOFT TOUCH KEYS
• 3W SPEAKER
• HIGH QUALITY DYNAMIC MICROPHONE WITH UP/DOWN AND LOCK KEYS
Specifications
General
Channels
Refer to programmed band
Modes (AM, FM)
Refer to programmed band
Operating Temp.
-10°/+55°C
DC Input Voltage
13.2Vdc ±15%
Size
140(L) x 37(H) x 190(D) mm
Weight
850 gr.
TRANSMITTER
System
CPU Controlled PLL
Synthesizer
Max Output Power
4W at 13.2Vdc
Modulation
AM (from 85% to 90%)
FM (1.8 KHz ±0.2 KHz)
Output Impedanced
50 Ohm unbalanced
Current Drain
1100 mA (at no modulation)
RECEIVER
System
CPU Controlled Double
Conversion Super
Heterodyne
IF
1° 10.695 MHz / 2° 455 KHz
Sensitivity
0.5µV for 20dB SINAD (FM)
0.5µV for 20dB SINAD (AM)
Audio Output Power
@10% THD 2.5W at 8 Ohm
Audio Distorsion
<8% at 1 KHz
Image Rejection
65dB
Adjacent Ch. Rejec.
65dB
Signal/Noise Ratio
45dB
Current Drain
250mA (stand-by)
