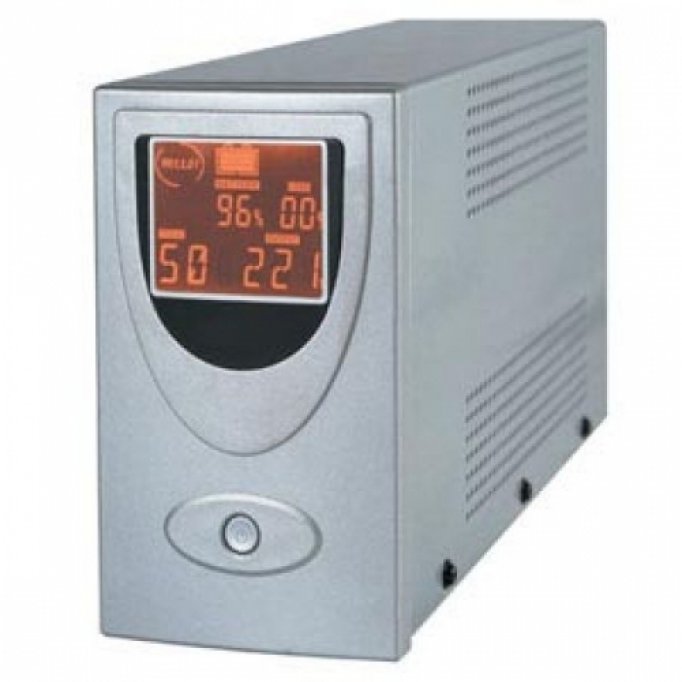

Braun Group - UPS-1500LCD
UPS offline 1500VA
UPS Offline cu AVR, 1500VA LCD cu strat dublu PCB; 230V/50Hz; cu RS232; "Braun Group"; negru
GARANTIE 24 LUNI
UPS offline 1500VA LCD, 230V/50Hz, Protectie scurt, interfata RS232
Microprocessor-based digital control.
Wide input voltage and frequency window.
Boost and buck AVR.
Automatically distinguishing output frequency .
LCD display and audible alarm features.
Automatically charging battery in UPS off mode.
Self-diagnosis on startup.
Cold start.
Lightning and surge protections.
Short circuit and overload protections.
Compatible with generators.
Cut off when no load connected.
Intelligent battery management.
Battery capacity and load capacity display.
RS232.
Specifications
VA Rating .: 1500VA
Real Power Rating : 900W
Input
Voltage : 100/110/120/220/230/240V±25%
Frequency: 50/60Hz±10%
Output
AVR: Yes
Voltage: 100/110/120/220/230/240V±10%
Wavefom: Sine Wave(Mains); Square Wave(Inverter)
Frequency: AC Mode: Track the Utility Battery Mode: 50±0.5Hz/60±0.5Hz
Short Circuit Protection: AC Mode:FUSE; Battery Mode:Shutdown Immediately and Switch to Fault Mode
Crest Factor: 3:1(Max)
Transfer Time: Typical Value 2~7 ms; Max: 10ms
Socket: German type
Battery
Battery Type: Sealed Lead-Acid, Maintenance-Free
DC Voltage: 24V
Configuration: 2x8AH/12V
Charge Current: 350mA~1.2A
Backup Time(Full Load): ≥3 Min
Surge Protection: 320 Joules
Communication: RS232
Audible Noise(at 1m): 320 Joules
Environment
Temperature: 0~40°C
Rlative Humidity: 0%-90%(non-condensing)
Storage Temperature: -25~40°C
Dimension (WxDxH)mm: 400x220x125
Net Weight(Kg): 13.5
Gross Weight(Kg): 14
